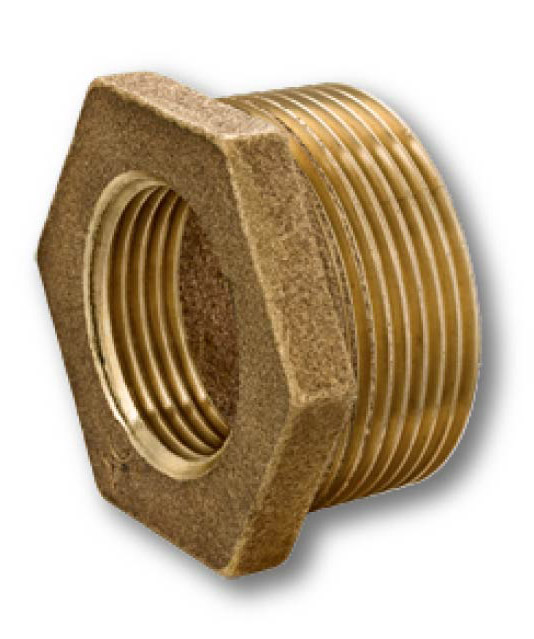

Hexagon Bushing

  • Model：BZ-3400

Product Introduction

Material : Bronze C84400/C83600/CB499K, LeadFree 89844
  Made to :ASME B16.15,ASMEB1.20.1,ISO 228-1 7-1
  Thread Type : BSPT/BSPF/NPT/Rp&R
  Surface Treatment :Sandblaster,Polish&Chrome Plated


Art. No. BZ-340302 BZ-340401 BZ-340402 BZ-340403 BZ-340601 BZ-340602 BZ-340603 BZ-340604
MNPT 3/8" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4" 3/4"
FNPT 1/4" 1/8" 1/4" 3/8" 1/8" 1/4" 3/8" 1/2"
L 18.6 2108 21.8 22.2 22.3 22.2 22.2 22.1
Z 6.5 10.1 10.1 4.6 10.6 10.6 9.6 8.2
S 19.8 25.3 25.3 25.3 28.8 28.8 28.8 28.8
Weight (g) 23 51 45 37 67 64.3 58.1 48.5

Art. No. BZ-341003 BZ-341004 BZ-341006 BZ-341204 BZ-341206 BZ-341210 BZ-341504 BZ-341506
MNPT 1" 1" 1" 1 1/4" 1 1/4" 1 1/4" 1 1/2" 1 1/2"
FNPT 3/8" 1/2" 3/4" 1/2" 3/4" 1" 1/2" 3/4"
L 26.3 25.1 25.1 28.5 26.3 28.6 28.1 28.1
Z 13.1 13.2 13.7 16.3 15.1 16.3 16.3 16.3
S 34.5 34.5 34.5 44.2 44.2 44.2 50.5 50.5
Weight (g) 108 94 96 196 172.4 138 256 239.7
　 　 　 　 　 　 　 　 　
Art. No. BZ-341510 BZ-341512 BZ-342004 BZ-342006 BZ-342010 BZ-342012 BZ-342015 BZ-342512
MNPT 1 1/2" 1 1/2" 2" 2" 2" 2" 2" 2 1/2"
FNPT 1" 1 1/4" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 1/4"
L 27.9 28.2 32.6 32.6 32.6 32.4 32.1 36.9
Z 15.9 8.0 23.7 23.4 19.6 18.9 18.1 18.1
S 50.5 50.5 63.1 63.1 63.1 62.9 63.1 77.7
Weight (g) 205.5 144 445.7 406 415 344.5 300 512

Art. No. BZ-342515 BZ-342520 BZ-343020 BZ-343025 BZ-344030
MNPT 2 1/2" 2 1/2" 3" 3" 4"
FNPT 1 1/2" 2" 2" 2 1/2" 3"
L 36.9 36.9 45 44.8 47.9
Z 18.1 18.1 27.5 27.5 23.7
S 77.7 77.7 92.6 92.6 116.4
Weight (g) 500 488 888 635 1356
